OCHAIN EASY
Ochain EASY: Instant and Intuitive Setup Adjustment
The Ochain EASY is a groundbreaking adjustment mechanism that allows you to seamlessly switch your bike's setup using just your hand. Effortlessly transition between different degrees of freedom:locked, 4°, 6°, 9°, or 12°, without the need for tools or disassembly.

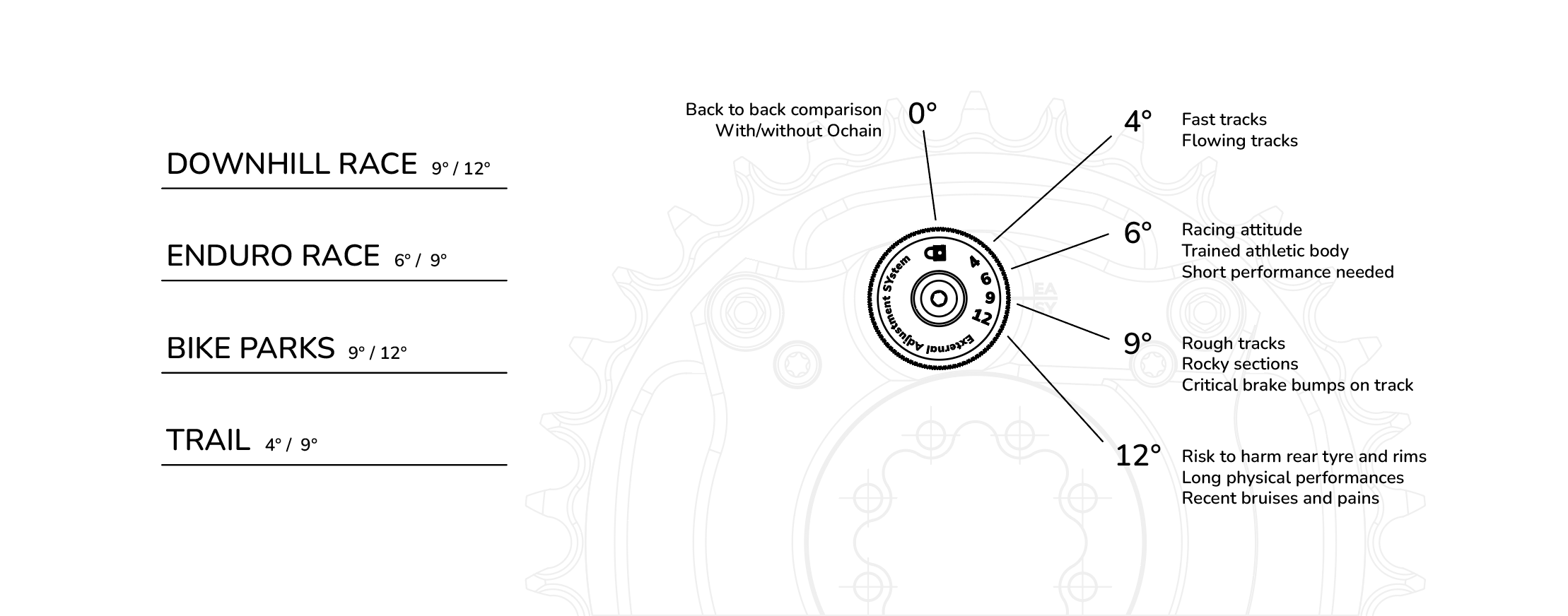

SETUP ADVICE
A step backwards: pedaling priority or gravity performances ?
If we need pedaling priority, we need to have less degrees of freedom.
If we need gravity performances, we need to have the maximum available degrees of freedom.
How to adjust the Ochain
STEP 1

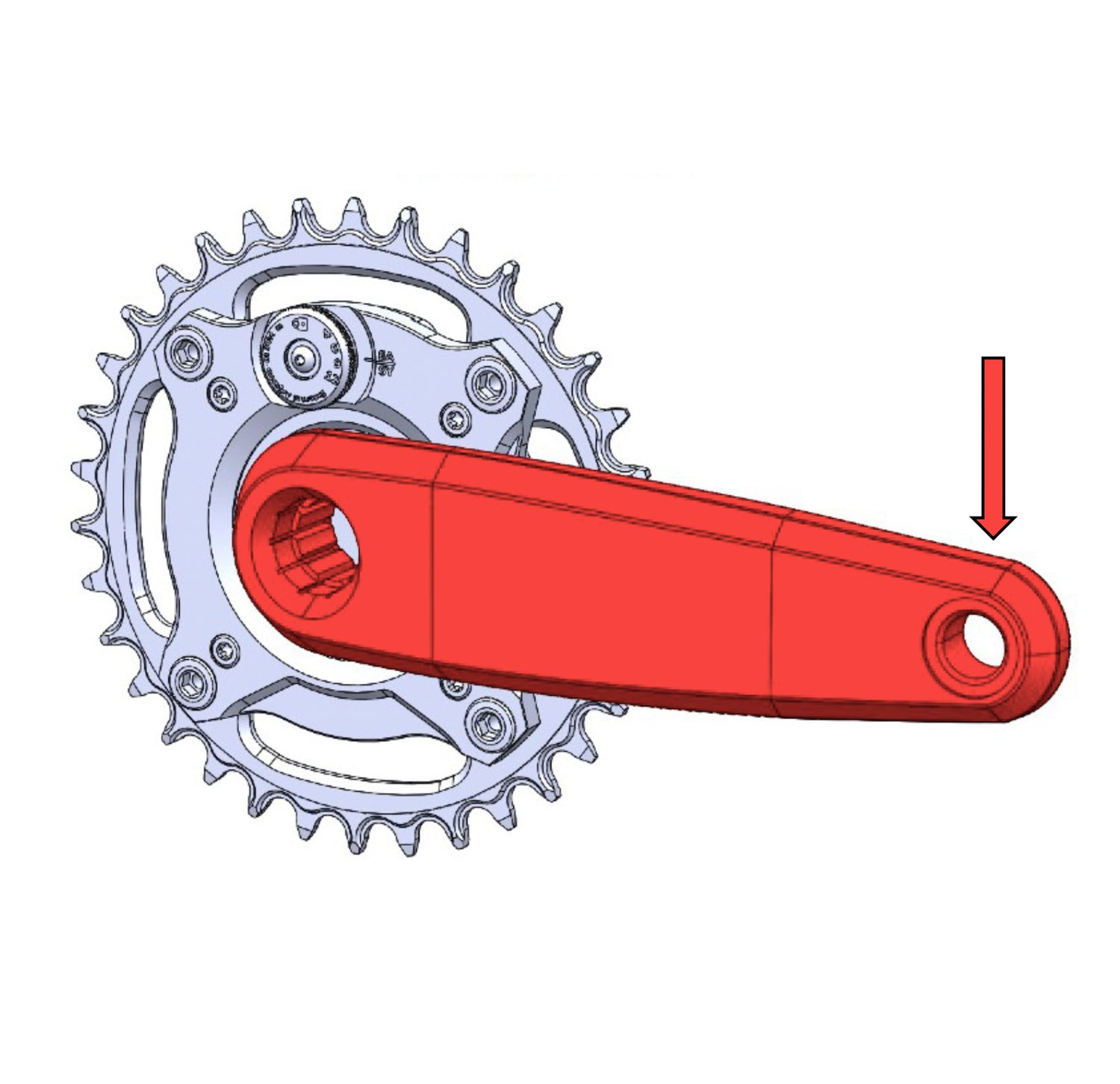

PUSH!
Push and hold the crank in pedaling direcon in order to engage the Ochain
STEP 2

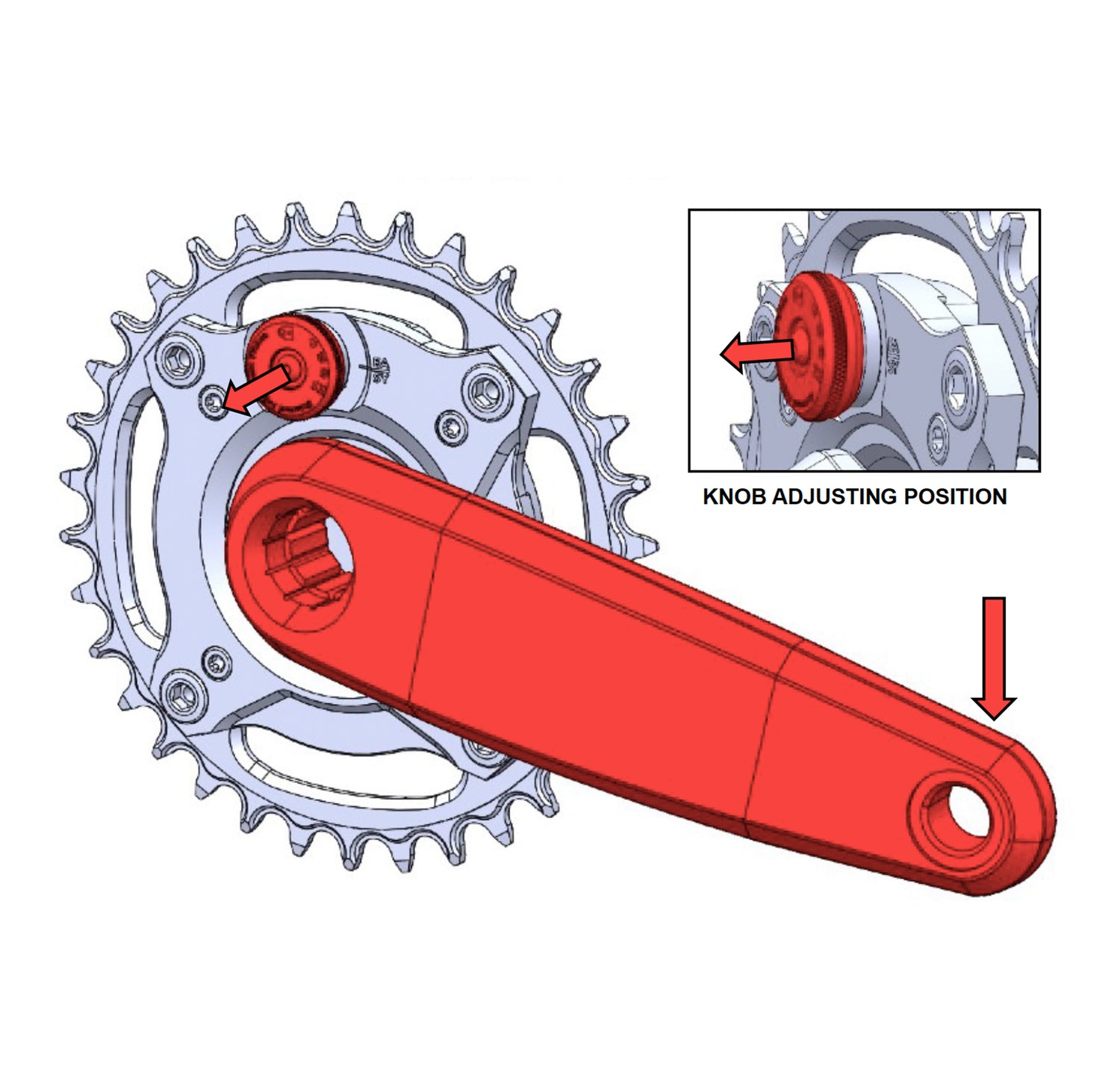

PULL!
Pull and hold the knob, to reach the knob adjusting position
Caption

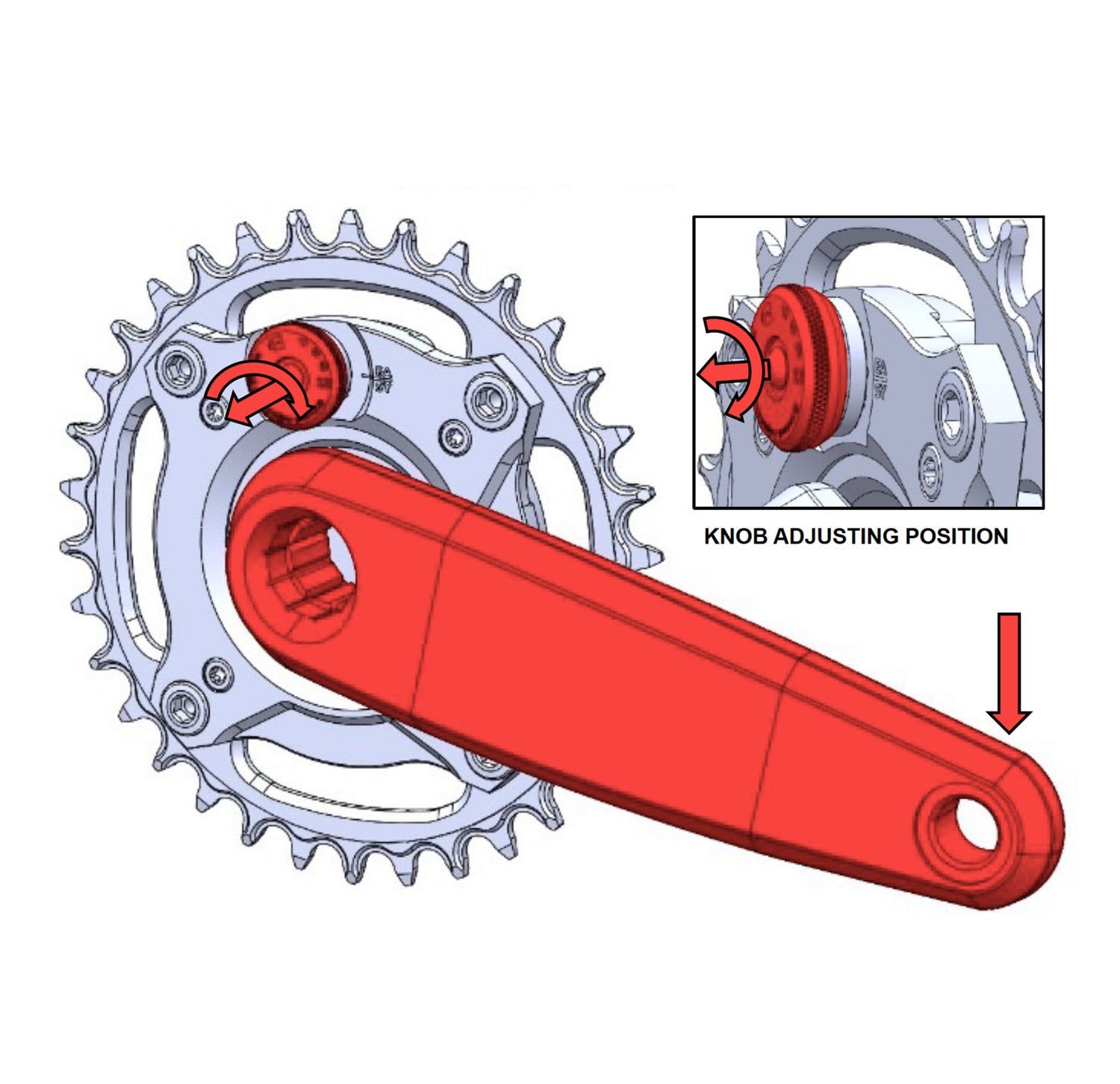

ROTATE 🤸🏻♂️
Rotate-it on the desired position.
STEP 4

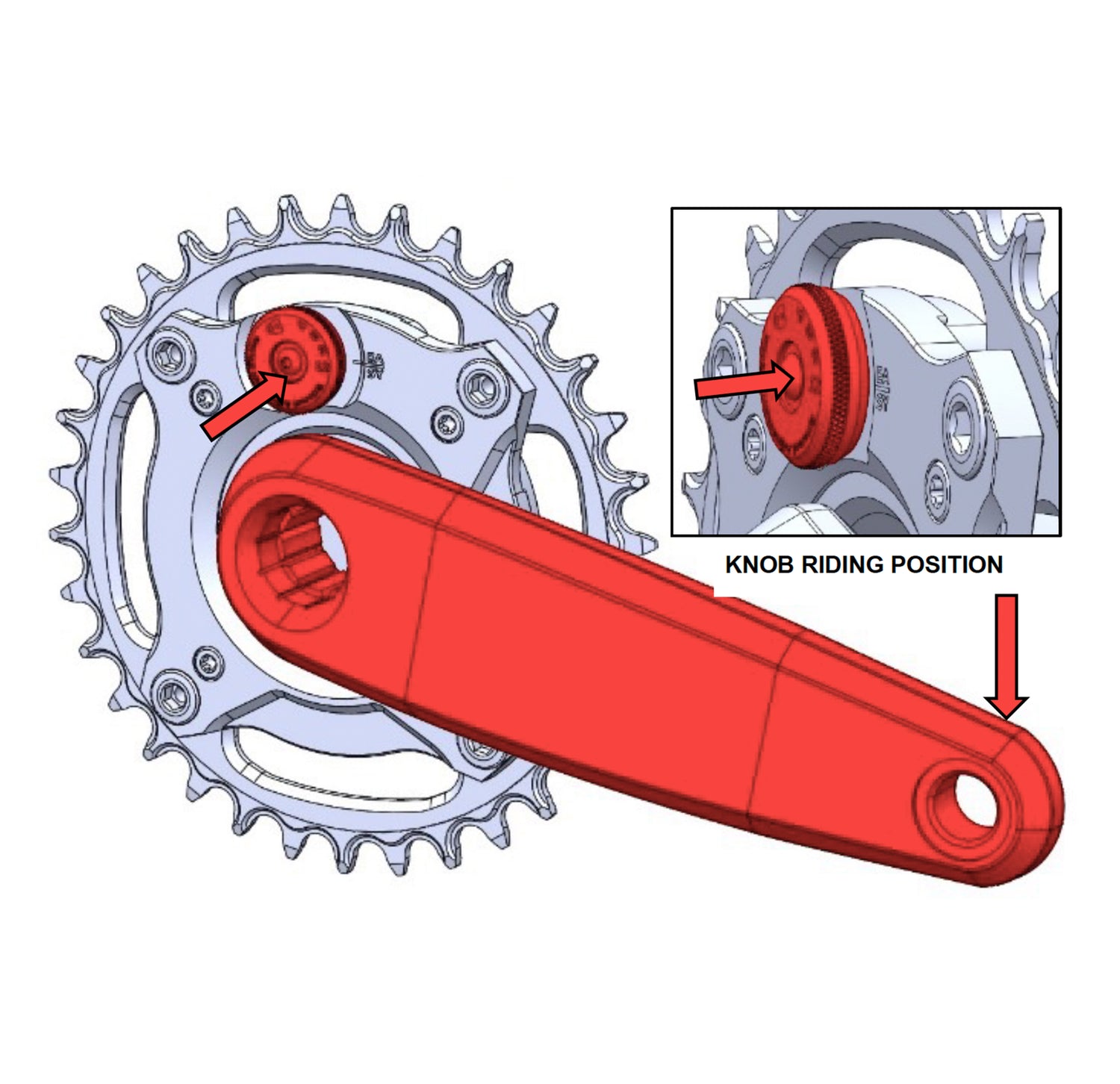

RELEASE
Release the knob, to reach the riding position
STEP 5

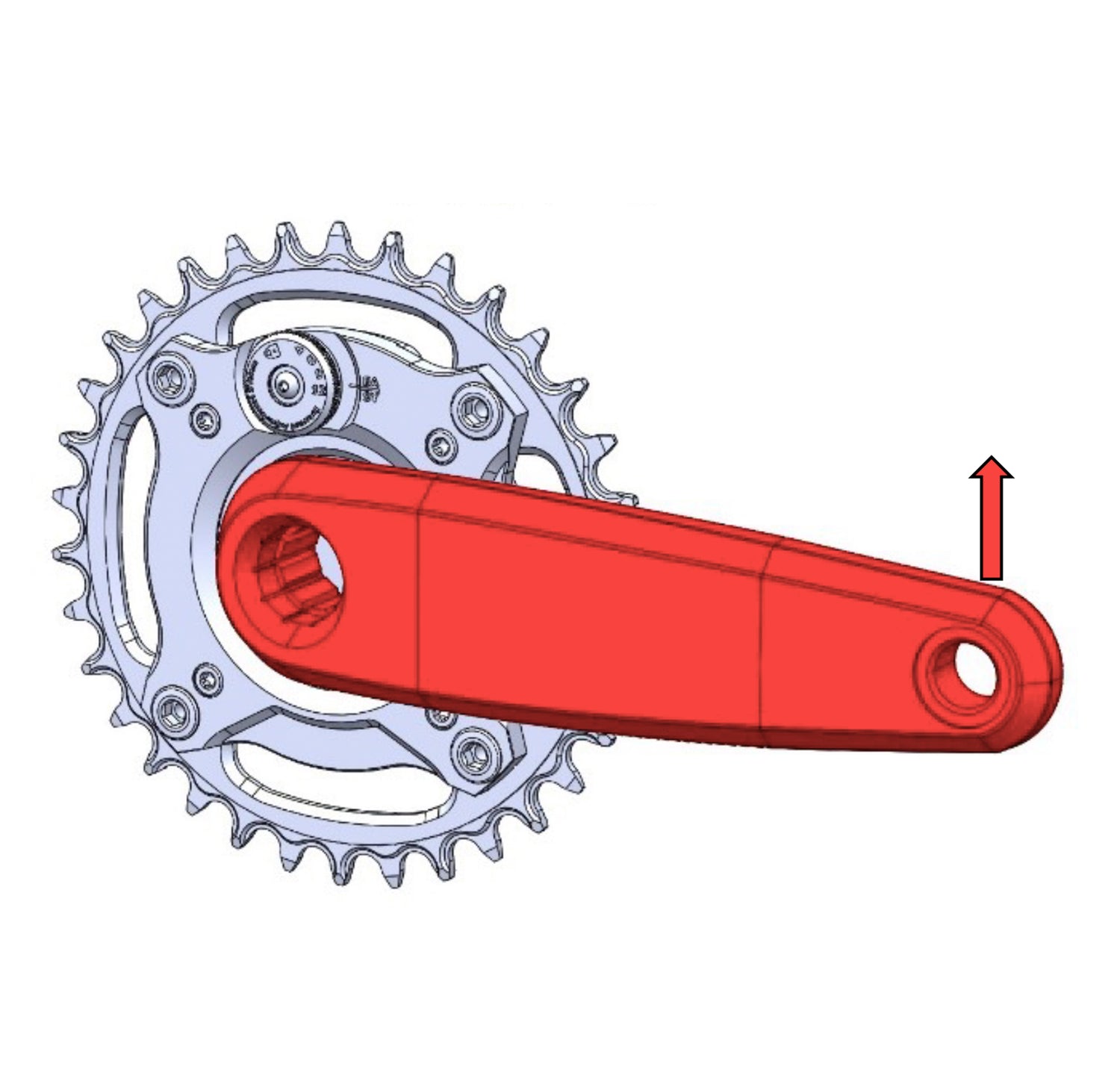

RIDE!
Release the crank. Ride it!
IMPORTANT:
Never operate on the adjusting system without pushing on the crank.
